How to Install a Golf Cart Lift Kit the Right Way

A standard golf cart is perfect for the fairway, but its limitations become clear the moment you venture onto a dirt road or uneven field. The low clearance makes it vulnerable to rocks and roots, and the stock tires offer little traction on challenging surfaces. A lift kit is the solution, providing the height needed to clear obstacles and fit larger, all-terrain tires. This single upgrade unlocks a new level of versatility for your cart, making it ready for work or adventure. If you're ready to make your cart more capable, this guide will show you exactly how to install a golf cart lift kit safely and effectively.

Key Takeaways

• Define your purpose before you buy: A lift kit is a functional upgrade, not just a cosmetic one. Decide if you need extra ground clearance for trails or worksites, as this will determine the right lift height and tire size for your cart.
• Safety and instructions are your best tools: A successful installation relies on careful preparation. Always read the manufacturer's manual, use jack stands for support, and switch your cart to "Tow" mode before starting any work.
• The job isn't finished after installation: Your cart's geometry has changed, so a professional front-end alignment is a must. After a short test drive, re-tighten all nuts and bolts to ensure everything is secure for the long run.

What Is a Golf Cart Lift Kit (and Do You Actually Need One)?

If you’ve ever seen a golf cart that looks taller and more rugged than the standard models on the course, it was likely equipped with a lift kit. In simple terms, a lift kit is an aftermarket modification designed to raise your golf cart’s body and suspension, usually adding anywhere from three to eight inches of height. While this certainly gives your cart a more commanding and aggressive look, the upgrade is about much more than just aesthetics. The primary purpose is to increase ground clearance, which is a total game-changer if you plan on driving over anything more challenging than a paved path.

So, do you actually need one? It all comes down to how and where you use your cart. If you’re sticking to smooth fairways or neighborhood streets, you can probably go without one. However, if your plans involve venturing onto dirt trails, navigating the bumpy back roads of New England, or using your cart for work on a farm or construction site, a lift kit becomes essential. It provides the clearance needed to avoid damaging the undercarriage on rocks, roots, and other obstacles. Many of our customers find it’s a must-have for their commercial vehicles, transforming a standard cart into a far more capable and versatile machine that’s ready for any task.

The Perks of a Lifted Cart

The most obvious benefit of a lift kit is the extra ground clearance. That added space between the cart’s frame and the ground means you can confidently drive over obstacles without wincing. This is invaluable whether you're using your cart for property maintenance, exploring wooded trails, or just dealing with a rough driveway. A lift also gives you the room to install larger, all-terrain tires, which dramatically improve traction and provide a smoother, more stable ride on uneven surfaces. Plus, let’s be honest, a lifted cart with a great set of wheels just looks impressive. It’s a fantastic way to personalize your ride, especially if you're starting with a model from our pre-owned inventory.

Decide How High to Go

Lift kits are available in several sizes, with 3-inch, 4-inch, and 6-inch options being the most popular. The height you choose should be directly related to the size of the tires you want to run. For example, a 3-inch lift is often perfect for 20-inch tires, while a 6-inch lift can accommodate larger 23-inch tires. While it might be tempting to go for the biggest lift you can find, remember that raising your cart also raises its center of gravity, which can impact stability on turns and slopes. It’s all about finding the right balance for your needs. A moderate 3- to 4-inch lift is a versatile sweet spot for most people.

Block vs. Spindle vs. A-Arm Kits

Not all lift kits are built the same. There are three main types, each offering a different level of performance and installation complexity.

• Block Lift Kits: These are the most basic option. They use simple steel blocks to raise your cart’s stock suspension. Block lifts are a budget-friendly choice if you just want a bit more height for slightly larger tires and are the easiest type to install.
• Spindle Lift Kits: This popular mid-range option replaces the factory spindle that connects the wheel to the steering assembly. Spindle kits often create a wider, more stable stance, making them a great all-around choice for mixed street and light trail use.
• A-Arm Lift Kits: For the best performance and durability, an A-Arm kit is the top choice. This heavy-duty option replaces your entire front suspension with stronger components, providing the smoothest ride over the roughest terrain. It's the go-to for serious off-road enthusiasts.

Choose the Right Kit for Your Cart

Before you add anything to your cart, you need to know your golf cart’s exact make, model, and year. A lift kit for a Club Car won't fit on an EZ-GO or Yamaha, so getting this detail right is the most important step. The good news is that most kits come with detailed instructions, so if you're handy with tools, you can likely tackle the installation yourself. If you're looking at our new inventory and already dreaming of customization, our team can help you select the perfect lift kit for your chosen model. We're always here to make sure you get the right parts for your cart and your goals.

Get Your Gear and Prep Your Workspace

Before you even think about loosening a single bolt, let's talk about preparation. Taking the time to get organized now will make the entire installation process smoother, safer, and a lot more enjoyable. A little prep work goes a long way in preventing those frustrating moments of searching for the right tool or wondering where a certain part goes. We’ll walk through gathering your tools, reviewing key safety measures, and getting your cart ready for its upgrade. Think of it as setting the stage for a successful project.

Your Tool and Materials Checklist

First things first, let’s gather your supplies. The good news is that you likely won’t need any highly specialized equipment. Most lift kits can be installed with a standard set of tools you might already have in your garage. You’ll definitely want a good socket set, a torque wrench for tightening bolts to the manufacturer’s specifications, and a sturdy floor jack with jack stands. Always double-check the instructions that came with your specific lift kit, as they will provide a complete list of required tools. Plan to set aside a few hours for the job, especially if it’s your first time. A lifted cart can completely change the look and feel of your ride, making it more capable for any task, whether you're using it as a personal vehicle or for work.

Safety First: Key Precautions

I can't stress this enough: safety should be your number one priority. Before you start, make sure your golf cart is on a flat, level surface. Turn the key to the OFF position and remove it completely. Next, locate the run/tow switch (usually found under the seat) and flip it to the TOW position. This is a crucial step that disconnects power to the motor, preventing the cart from accidentally lurching forward while you’re working on it. Taking these simple precautions protects both you and your vehicle from unexpected mishaps. At C2 Vehicles, we're not just about selling carts; we're about ensuring our community enjoys them safely. Our commitment to you extends beyond the sale, which is why we've been a trusted name in New England for years. You can learn more about our story and values on our about us page.

Prep Your Cart and Track Your Steps

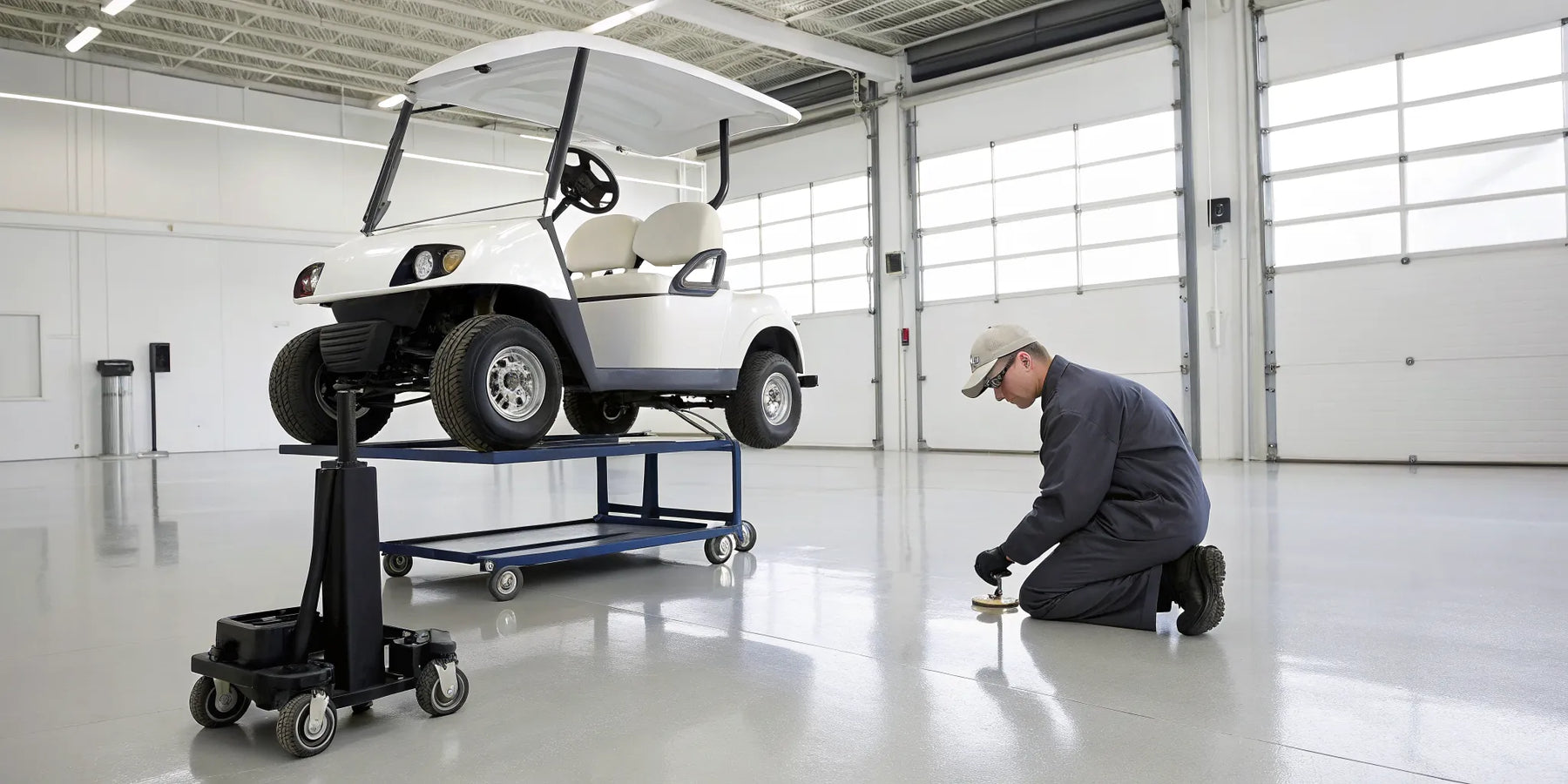

With your safety checks done, it’s time to get the cart ready. Use a floor jack to lift the end of the cart you’re starting with, and securely place jack stands under the frame rails to support its weight. Never work under a vehicle that’s only supported by a jack. Once the cart is stable, here’s a pro tip that will save you a major headache later: take pictures. Use your phone to snap a few photos of the suspension components before you start taking them apart. These pictures will serve as your personal instruction manual during reassembly, showing you exactly how everything fits together. And if you run into a snag you can't solve, remember that our team is here to help. You can always find a C2 Vehicles location for professional service and advice.

How to Install a Golf Cart Lift Kit: Step-by-Step

Alright, you’ve got your lift kit and you’re ready to transform your cart. This is where the real fun begins. Installing a lift kit is a totally manageable weekend project, but it requires patience and the right approach. We’ll walk you through the process one step at a time. Remember to always follow the specific instructions that came with your kit, as models can vary. Whether you're upgrading one of our personal vehicles or a workhorse from our commercial line, taking your time is key to getting it right.

Step 1: Power Down and Secure Your Cart

First things first: safety. Before you even think about lifting the cart, you need to power it down completely. Turn the key to the 'Off' position and remove it. For electric carts, find the run/tow switch (usually under the seat) and flip it to 'Tow.' This disconnects the power from the motor, preventing any accidental movement while you're working. It’s a simple step that’s crucial for your safety. Finally, chock the wheels that will remain on the ground to ensure the cart doesn’t roll while you work on it.

Step 2: Remove the Front Suspension

Now it’s time to get access to the front suspension. Using a sturdy floor jack, lift the front of the cart and place jack stands securely under the frame rails for support. Never work under a cart that’s only held up by a jack. Once it’s stable, you can remove the front wheels. Next, you’ll disconnect the tie rods from the steering assembly and remove the factory spindles or A-arms, depending on your cart’s setup. Keep all your nuts and bolts organized; you might need some of the original hardware later.

Step 3: Install the Front Lift Kit

With the old components out of the way, you can install the new front lift kit parts. Your kit will come with new, longer spindles or A-arms. Pay close attention here, as many kits have parts that are specific to the driver or passenger side. The instructions should clarify this. Attach the new components where the old ones were. Once they’re in place, reconnect the tie rods to the new spindles. Make sure the steering knuckles are oriented correctly, which usually means they face the rear of the cart.

Step 4: Tackle the Rear Suspension

Let’s move to the back. The process is similar, starting with lifting the rear of the cart and securing it with jack stands. After removing the rear wheels, place your floor jack under the axle to support its weight. You don’t want it to drop suddenly when you unbolt it. With the axle supported, you can now disconnect the shock absorbers from the axle plates and carefully remove the U-bolts that hold the leaf springs to the axle. This will free up the axle from the suspension.

Step 5: Install the Rear Lift Kit

Now you’ll install the rear lift components. Depending on your kit, you’ll either be adding lift blocks or longer shackles. If you have lift blocks, they go between the leaf spring and the axle. If you have longer shackles, they replace the factory ones to create more space. Once the blocks or shackles are in position, secure everything with the new, longer U-bolts provided in your kit. Tighten the nuts evenly in a crisscross pattern to ensure the pressure is distributed correctly across the axle.

Step 6: Lower the Cart and Do a Quick Check

You’re in the home stretch. With all the lift components installed, it’s time to put the wheels back on your new inventory cart. Tighten the lug nuts in a star pattern to ensure the wheels are seated properly against the hub. Carefully lower the cart off the jack stands. Before you call it a day, do a quick visual inspection. Turn the steering wheel from lock to lock and check that your new, larger tires aren’t rubbing against the body, frame, or any suspension components. Some minor trimming of plastic parts might be necessary.

What Post-Installation Checks Should You Never Skip?

You’ve tightened the last bolt and lowered the jack, but your work isn’t quite finished. Skipping the final checks after installing a lift kit is like baking a cake and not tasting the frosting, except the consequences are a lot more serious. These post-installation steps are essential for your safety and the longevity of your cart. Taking a few extra minutes now ensures your newly lifted cart is stable, secure, and ready to ride. Don't be tempted to hit the trail just yet. A thorough inspection will give you peace of mind and prevent major headaches down the road. If you run into any issues you can't solve, remember that our team is always here to help. You can always find a C2 Vehicles location near you for professional service and advice.

Align the Front End

After installing a lift kit and bigger tires, your cart's geometry is going to be different. That's why getting a professional front-end alignment is a non-negotiable step. A proper alignment ensures your tires make correct contact with the ground, which prevents uneven wear and extends their lifespan. More importantly, it keeps your steering responsive and predictable, making your cart much safer to drive. An unaligned cart can pull to one side or feel unstable, especially at higher speeds. Think of it as a small investment to protect your new tires and ensure a smooth, controlled ride every time you get behind the wheel.

Check for Tire Rub and Clearance

Now it’s time to check for clearance. Turn the steering wheel all the way to the left and right, inspecting the space between the tires and the cart’s body, suspension components, and frame. You’re looking for any signs of rubbing. Some lift kits, especially when paired with larger tires, may require you to trim small parts of the plastic fender or bumper for a perfect fit. It’s better to discover this in your garage than when you’re making a sharp turn on a trail. Gently bounce the suspension as well to simulate driving conditions and ensure there’s enough clearance when the cart is in motion.

Inspect Torque, Hardware, and Weight

Once the full weight of the cart is back on the suspension, things can shift and settle. This is why you need to go back and double-check every single nut and bolt you touched during the installation. Grab your torque wrench and verify that all hardware is tightened to the manufacturer's specified settings. Pay special attention to critical components like the lug nuts, spindle bolts, and any A-arm or leaf spring hardware. A loose bolt can quickly lead to component failure and a dangerous situation. This step might feel repetitive, but it’s one of the most important safety checks you can perform.

Take a Test Drive and Re-Tighten

Your first drive should be a short, slow test run in a safe, flat area. As you drive, listen for any unusual clunks, squeaks, or grinding noises. Feel for any vibrations or pulling in the steering. This initial shakedown cruise helps everything settle into its final position. After your short trip (just a few minutes will do), bring it back to the garage and do one final check. That’s right, you’re going to re-tighten all the hardware again. It may seem like overkill, but suspension components can settle after bearing weight for the first time, potentially loosening some bolts. This final torque check ensures everything is locked in and secure for the long haul.

Common Golf Cart Lift Kit Mistakes to Avoid

Installing a lift kit can be a really rewarding DIY project, but a few common missteps can turn your weekend project into a major headache. Taking the time to avoid these pitfalls will save you from frustration and ensure your cart is both safe and performs well after the upgrade. Think of it as a "measure twice, cut once" approach for your golf cart. By paying attention to the details from start to finish, you’ll get the results you want without any backtracking.

Don't Skip the Instructions

This might sound obvious, but you’d be surprised how many people toss the instructions aside and just start wrenching. Every lift kit is different, and the manufacturer provides those step-by-step guides for a reason. They contain specific details about your kit, from bolt sizes to the exact sequence of assembly. Following the provided instructions carefully is the single best thing you can do to ensure the installation goes smoothly. Before you even touch a tool, read the manual from front to back so you understand the entire process and can anticipate the next steps.

Mind Your Tire Size and Weight Limits

Once you lift your cart, you’ll probably want to add bigger tires. It’s important to remember that the height of your lift kit directly determines the maximum tire size you can safely install without rubbing. Don’t just guess or buy the biggest tires you can find. Also, remember that a lift kit raises the cart’s body, but it doesn’t increase its payload capacity. Be mindful of the original weight limits, especially if you use your cart for heavy-duty tasks, whether you're using it as a personal vehicle or for commercial work.

Check for Existing Wear and Tear

A lift kit puts new stresses on your cart’s suspension and steering components. Before you install it, take the opportunity to give your cart a thorough inspection. Look for worn-out bushings, loose tie rods, or aging shocks. Installing a brand-new kit on top of old, worn parts is a recipe for poor handling and can even be unsafe. While you have everything apart, it’s a great time to add grease to the joints and replace any parts that are past their prime. If your cart has seen better days, it might be worth considering if an upgrade from our pre-owned inventory is a better long-term solution.

Don't Forget the Final Checks

You’ve installed the kit, mounted the tires, and the cart is back on the ground. You’re not done yet! The most critical final step is to get a front-end alignment. Altering the suspension geometry without realigning the front end will cause erratic steering and premature tire wear. This isn't an optional tweak; it's essential for safety and performance. After the alignment, take the cart for a short test drive on a flat surface, then put it back in the garage and re-torque all the nuts and bolts to the manufacturer's specifications. Hardware can settle after the weight is on it, so a final check is crucial.

How to Keep Your Lifted Golf Cart in Top Shape

Your lifted golf cart looks amazing, but the work isn't quite done. A lift kit changes your cart's dynamics, so a little extra attention is needed to keep it running smoothly and safely. Think of these checks as the secret to a long and happy life for your upgraded ride, whether you're using it for work or play. These tips apply to our entire range of commercial vehicles and personal carts.

Inspect Suspension and Hardware Regularly

After your first few drives, it's smart to go over all the nuts and bolts on your new suspension. Things can settle and shift, so grab your tools and re-tighten everything you just installed. Make this a regular habit, especially if you're taking your cart on rougher terrain. Listen for any new squeaks or rattles, as they're often the first sign of a loose component. A quick check every month or so can prevent a small issue from turning into a major repair, ensuring your cart continues to run like new.

Keep an Eye on Tires and Alignment

A lift kit changes your cart's suspension geometry, which means a front-end alignment is not optional, it's essential. A proper alignment right after installation will make your steering safer, prevent premature tire wear, and give you a much smoother ride. Also, take a moment to check for tire rub. Turn the steering wheel fully in both directions and inspect the clearance between the tires and the body. Some kits may require minor trimming of the plastic bumper to prevent rubbing, which can damage your tires over time.

Know When to Call a Pro

While regular inspections are great, some things are best left to the experts. If you notice persistent uneven tire wear, if the steering feels off even after an alignment, or if you hear a noise you just can't pinpoint, it's time to call for backup. Trying to fix complex suspension or alignment issues without the right tools can cause more harm than good. Our team is always here to help. If you have any questions or need professional service, just find a C2 Vehicles location near you and let our technicians take a look.

Related Articles

• Lift Kits for Golf Carts & Utility Vehicles
• Lifted Electric Golf Cart: A Complete Buyer's Guide
• Lifted Golf Carts & Vehicles for Sale
• Golf Cart 101: Your Ultimate Buyer's Guide
• Used Golf Carts: A Complete Buyer's Guide

Frequently Asked Questions

Will lifting my golf cart make it feel tippy or unstable? This is a common concern, and it's a great question to ask. While raising your cart does raise its center of gravity, most modern lift kits are designed to compensate for this. Spindle and A-Arm kits, for example, often create a wider, more stable stance than the factory setup. If you stick to a moderate lift of three to four inches, you'll get the clearance you need for larger tires without dramatically affecting stability for everyday driving and light trail use.

How do I know which lift kit size is right for me? The best way to decide on a lift height is to first think about the tires you want. The primary reason for a lift is to create clearance for larger, more capable tires. A 3-inch lift is typically perfect for 20-inch all-terrain tires, which is a fantastic all-around setup. If you want to go bigger with 22 or 23-inch tires for serious off-road use, you will need a 6-inch lift. It’s all about matching the lift to your tire goals and how you plan to use the cart.

Can I install a lift kit myself, or should I have a professional do it? If you are comfortable with tools and have a good set of wrenches, a floor jack, and sturdy jack stands, you can definitely tackle this as a weekend project. The key is to read the instructions thoroughly before you start and work patiently. However, if you're not confident in your mechanical skills or don't have the right safety equipment, having a professional handle the installation is the safest choice. This ensures every component is installed and tightened correctly.

Does a lift kit affect the battery life of my electric cart? The lift kit itself doesn't draw any power, but the changes that come with it can have a small impact. A lifted cart almost always has larger, heavier, all-terrain tires. These tires create more rolling resistance than standard turf tires, meaning the motor has to work a bit harder to move the cart. This can lead to a slight decrease in your cart's overall range on a single charge, but for most drivers, the trade-off for improved capability is well worth it.

Do I really have to get an alignment after installing a lift kit? Yes, absolutely. This is a post-installation step you should never skip. Changing the suspension height and components alters your cart's steering geometry. Without a proper front-end alignment, your steering can feel unpredictable, the cart might pull to one side, and your brand-new tires will wear out unevenly and very quickly. Think of an alignment as the final, critical step that locks in the safety and performance of your new setup.
